Gear Pump Preformers and Extruders

Gearing up for increased business or have long production runs? A Gear Pump Preformer will provide you with a continuous production capability, reduce machine set-up and negate the need to pre-heat rubber on a two-roll mill.

Gear Pump Preformers and Extruders

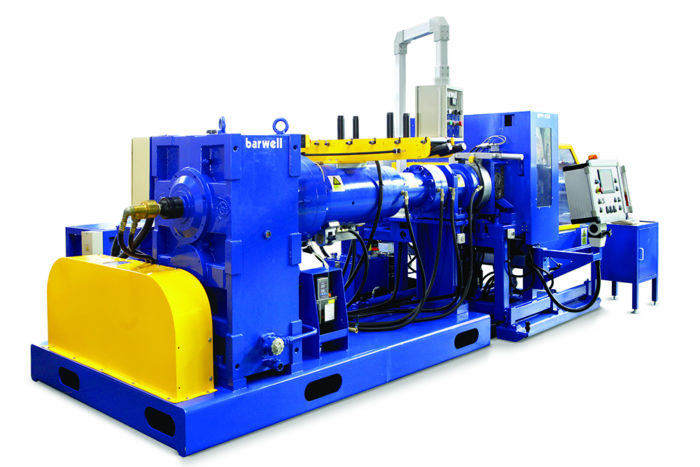

Barwell Gear Pump Continuous Rubber Preformers

The Barwell Gear Pump Preformer is a fully automated and highly advanced screw extruder with gear pump technology, specifically designed to provide high levels of control and processing flexibility. The range is ideal for the preforming or extrusion of almost any form of rubber compound.

Excellent for long continuous production runs or for profile extrusion requiring greater dimensional stability.
Suitable for the production of rubber preforms/blanks, pellets, and also strips and cord extrusions
A fully automated processing method which reduces user dependence and increases productivity
Technologically advanced processing provides optimum levels of dimensional stability, product consistency, accuracy and superior quality
An intelligent process that ensures very high-temperature control providing versatility at low temperatures
Enables extrusion, cutting and check-weighing in one precise and efficient process
A cost-cutting solution reducing material wastage and labor costs as well as negating the need to pre-heat your rubber on a two-roll mill
A safe, reliable and user-friendly system

Features

Superior design herringbone gears for optimum flow
Includes Weigh Scales Loopback for Automatic Weight Adjustment
For many applications, accuracy to within +/-1% can be achieved
Omron 8” (200mm) Touch screen user interface (Multi-language with password protection)
2000 product database on removable “Flash memory”
Prompt and error messages with Alarm history (for faults)
Fully automated
350 bar /5000 psi bar operating pressure

Options

Extruder or Preformer
Cutter Pulse option to Start/Stop the Knife over a time period to enable Profiles to be easily cut to length

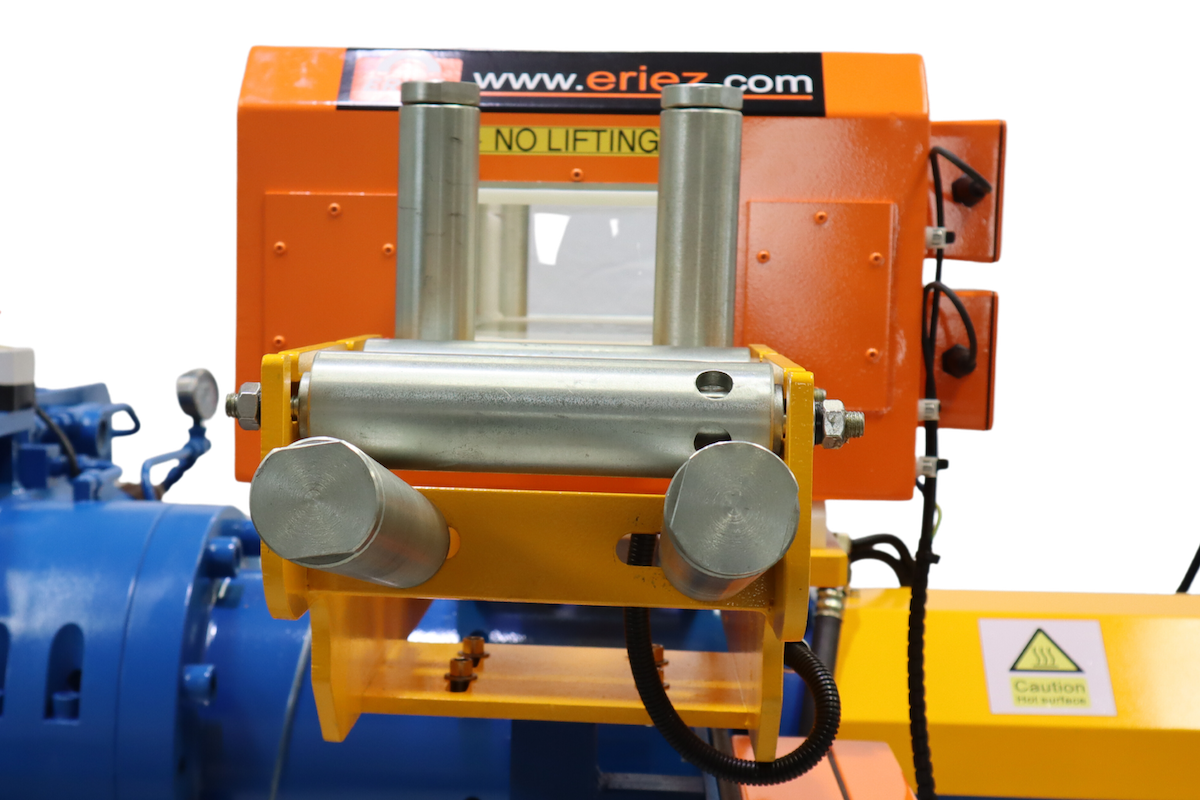

Built in metal detector for material screening
Barcode reader
General Purpose Head or Shoe Sole Head (available on BPP550 or above)
800 cuts per minute single rotary knife
Two speed gearbox to give higher cutting torque and speeds for large and small blanks (this is standard on 320 models and above)
Data capture which stores process information for recording process control data on a Flash Card. Can be viewed via an Ethernet connection
Variable speed added to standard conveyor – useful when preforming thin large O rings

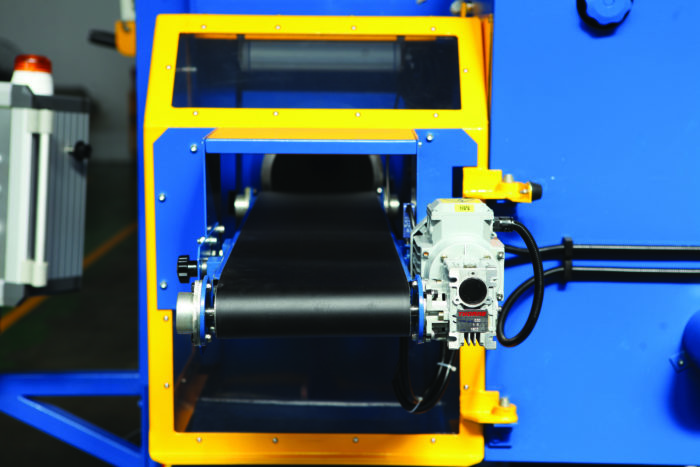

Variable speed die face conveyor helps support long extruded profiles

Barwell Gear Pump-NX Smart Preformer Option

Gear Pump-NX Smart Preformer machines have all the benefits of the standard range plus advanced technology, allowing machines, devices, sensors, and people to connect and communicate.

Provides Process Engineers with manufacturing process data to aid decision-making
Supplies Operators with alarms, production history, error logging, live tracking, service reminders, daily checks, and monitoring
Allows remote access to the machine’s control panel for problem-solving
Compatibility to factory management systems Gear Pump-NX machines help rubber processors to develop Industry 4.0 smart factories.
